[vtk-developers] Proposed fix for vtkOpenGLTexture

[Patrick Bergeron]

Interesting for the workaround. Thanks!


I'm soooooo not set-up for running the test suites. Any volunteer?



________________________________
From: Ken Martin <ken.martin at kitware.com>
Sent: February 19, 2019 11:59:26 AM
To: Patrick Bergeron
Cc: vtk-developers at vtk.org
Subject: Re: [vtk-developers] Proposed fix for vtkOpenGLTexture

You can do this in VTK as is using vtkTextureObject->Create2DFromRaw and then vtkTexture->SetTextureObject.

But I don't have an issue with your suggested change provided it passes testing.



On Tue, Feb 19, 2019 at 11:48 AM Patrick Bergeron <pbergeron at spiria.com<mailto:pbergeron at spiria.com>> wrote:

Hello. I sent a recent email stating I needed to pass arbitrary data to a shader, encoded in a texture of float format.


Unfortunately, my shader only received texels with values clamped between 0-1.  As you can imagine, this is a problem.


I have traced the problem down to vtkOpenGLTexture::Load() function.


What Load() does is :

- Checks number of inputs. If 1, normal texture. If 6, cubemap texture.  (OK)

- Gets the image scalars (aka pixels) and number of components (aka: channels)   (OK)


- Calls MapScalarsToColor if not depth map, or if colormpde is Map_Scalars, or if datatype is NOT unsigned char.  (UGH!)


- Resizes the input of the source exceeds GL's internal dimension capacity. (OK)

- Resamples the image if needed. (OK)


- Creates a 1-channel floating point depth image, if it's a depth texture, by calling CreateDepthFromRaw(). (OK)

  (or, if not a depth map)

- Creates a 3 or 4-channel cube map, or normal texturemap, by specifying the new converted data type of VTK_UNSIGNED_CHAR.



There is actually very little to do to support arbitrary float data: Simply avoid remapping to unsigned char if the data is float (unless there's intentional remapping by using such ColorMode), and pass the actual format down to CreateXXXFromRaw()



My proposed change is to not convert incoming float data to unsigned char, but rather, to leave float color data alone.


Edit:

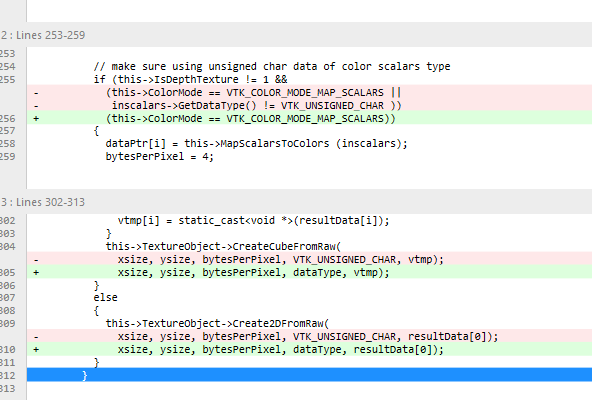

Change this (eg: remove red line)


        if (this->IsDepthTexture != 1 &&
          (this->ColorMode == VTK_COLOR_MODE_MAP_SCALARS ||
           inscalars->GetDataType() != VTK_UNSIGNED_CHAR ))
        {
          dataPtr[i] = this->MapScalarsToColors (inscalars);
          bytesPerPixel = 4;
        }

to this:

        if (this->IsDepthTexture != 1 &&
          (this->ColorMode == VTK_COLOR_MODE_MAP_SCALARS))
        {
          dataPtr[i] = this->MapScalarsToColors (inscalars);
          bytesPerPixel = 4;
        }


and these:

          this->TextureObject->CreateCubeFromRaw(
            xsize, ysize, bytesPerPixel, VTK_UNSIGNED_CHAR, vtmp);

          this->TextureObject->Create2DFromRaw(
            xsize, ysize, bytesPerPixel, VTK_UNSIGNED_CHAR, resultData[0]);


to these:

          this->TextureObject->CreateCubeFromRaw(
            xsize, ysize, bytesPerPixel, dataType, vtmp);


          this->TextureObject->Create2DFromRaw(
            xsize, ysize, bytesPerPixel, dataType, resultData[0]);



And that's all there is to it.

Does anyone have any objection?  The only side effect I can imagine is that more texture memory is consumed iff the source image data is float and no remapping is desired. With recent GPU hardware, I'd be surprised if this was a problem.

In any case, with this change, we can effectively pass unclamped arbitrary floating-point data buffers to shaders to be used for advanced viz techniques.

Thanks
Patrick Bergeron




[cid:16906aa0d24f456b1e51]
