[vtk-developers] Charts TestScatterPlotColors should be failing...

[Eric E. Monson]

It looks like TestScatterPlotColors.png is fine, but TestParallelCoordinatesColorsPython fails with an image mismatch and TestLinePlotColors.png isn't in VTKData yet. Here's a link to the PNGs that were generated by my tests:

http://www.cs.duke.edu/~emonson/ColorTestPNGs_20101230.zip

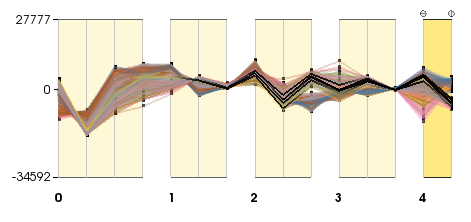

I don't know why your PC plot looks different than mine. I have been noticing some strange line colors in the parallel coordinates color-by-array – not in the tests, but in my own application. Maybe there is a bug in the code for what pen it's using or in the OpenGL calls...? I once in a while see a few PC lines (say 5 or so out of 100) rendered as completely black or white after external render calls or upon resizing of the window, but I can't pin it down yet or see it in the Python test on my machine. The lines are then painted correctly as soon as I mouse over the plot... (image attached)

Thanks,
-Eric

-------------- next part --------------
A non-text attachment was scrubbed...
Name: PCcolorPenProblems1.png
Type: image/png
Size: 30602 bytes
Desc: not available
URL: <http://public.kitware.com/pipermail/vtk-developers/attachments/20101230/2323fa95/attachment-0001.png>
-------------- next part --------------


On Dec 30, 2010, at 1:02 PM, Marcus D. Hanwell wrote:

> On Thu, Dec 30, 2010 at 12:09 PM, Eric E. Monson <emonson at cs.duke.edu> wrote:
>> Thanks for the quick attention, Marcus. (Sorry you got both the old and revised versions of my email.) I am not familiar enough with how the Python tests (or any tests) work, so I'm glad you seem to see the problem -- this was just my guess for why it was passing.
>>
>> I'm very excited that for the first time in quite a while I can build my application against VTK master without any local mods!
>>
> I have just pushed a fix, 083fcca, and also added new baseline images
> to VTKData. I would appreciate it if you could check the baseline
> images look correct. I am pleased you are at a stage where no local
> modifications are required now, just inside 2010 ;-)
>
> Marcus
