[vtk-developers] vtkRect2DWidget & window resize

[John Platt]

Hi,

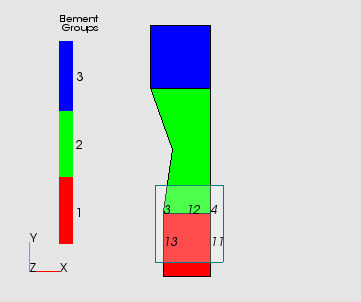

Attached is a 2D widget for interactively changing a rectangular
selection in a viewport. I am currently using it with
vtkSelectVisiblePoints to specify a region for labelling. I would like
to submit this code but have a problem handling resize of the render
window.



The classes follow the same model as vtkScalarBarActor &
vtkScalarBarWidget. Changes in the rectangle actor due to mouse
interaction events are caught by the widget but I can't find an event to
observe for resizing the window. The present solution is for
vtkRect2DActor::SizeRect2D() to send a Modified event to the widget
which then invokes a Modified event for observers of the widget. The
problem is that any interaction with the widget now fires 2 events, an
Interaction event and a Modified event. I would be grateful for
suggestions on alternative solutions.



There is also a minor problem with the cursor shape changing as it
passes over the rectangle when interacting with the camera (this is also
a feature of vtkScalarBarWidget).



I have also noticed that the bottom right pixel of the rectangle frame
is always missing. I am hoping this is a problem with my graphics card.



Any other comments are also welcomed.



John.
